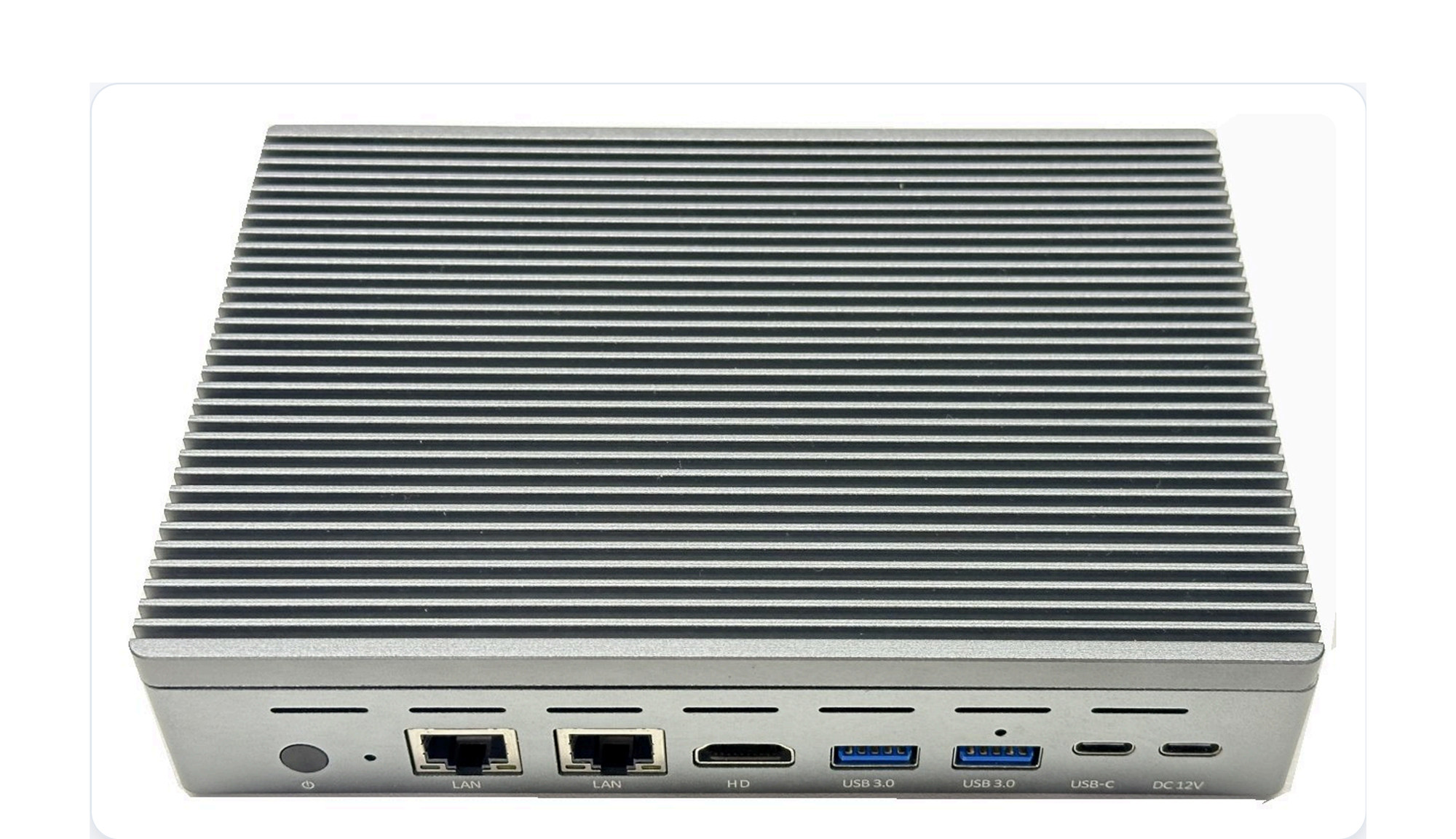

Intel Celeron Based Embedded PC
Intel Celeron Based Embedded PC Intel Celeron Based Embedded PC Intel Celeron Based Embedded PC

Intel Celeron Based Embedded PC

Item No.: F9B Pro 1
This new Intel Celeron based embedded PC is suitable for digital signage, kiosk, POS and office usage. It supports Windows 11 and Linux. Also can work 7x24H environment.
Description
Request a Quote
Built for always-on commercial duty

The quiet workhorse behind
every screen you deploy.

A fanless, entry-level mini PC engineered for the jobs that never stop: digital signage, media playback, self-service kiosks, point of sale and everyday office productivity. Zero noise. Minimal power. Runs 24/7 without babysitting.

12th Gen Intel® N100 16 GB LPDDR4 256 GB Storage Dual 2.5 GbE 4K HDMI 2.0 Windows 11 Pro
Explore the Applications Full Specifications

173 × 116 × 26 mm · passively cooled · VESA-mountable · designed for system integrators and volume roll-outs

Fanless
26 mm Ultra-slim chassis
Why integrators standardise on the F9B Pro

Right-sized performance, engineered for uptime

Most commercial deployments do not need a high-end desktop — they need a machine that turns on every morning, never makes noise, and never asks for attention. The F9B Pro is deliberately specced for that job, and nothing more.

Completely fanless

Heat moves through a full-length aluminium fin heatsink instead of a fan. No rotating parts means no bearing failures, no dust ingestion and no acoustic signature — critical inside kiosks and behind displays.

Made for 24/7 duty

A 6-watt-class Intel® N100 platform runs cool and sips power, so it can stay powered on around the clock — signage that never sleeps, kiosks that never blink, back-office terminals that are always ready.

Dual 2.5 GbE networking

Two independent 2.5-gigabit RJ-45 ports (RTL8125BG) let you separate traffic — for example payment terminals on one segment and the store network on the other

4K output, dual display

HDMI 2.0 delivers a crisp 4K@60 Hz signal for menu boards and video walls, while the full-function USB-C port can drive a second independent screen — one compact box, two surfaces covered.

Hardware video decode

Intel® UHD Graphics handles H.264, HEVC and VP9 decoding in silicon, so 1080p and 4K content plays smoothly and efficiently without loading the CPU — the core requirement for signage and media-player roles.

Windows 11 Pro ready

Ships with Windows 11 Pro, so your commercial software, remote-management tools, group policy, BitLocker and kiosk/signage shells are all supported out of the box.

Design & thermals

A solid block of aluminium that happens to be a computer

The entire top surface is a machined fin array that acts as the system's heatsink. There is no intake, no exhaust, no filter to clean, and no fan to replace. Four anti-slip rubber feet keep the unit stable on a shelf or counter

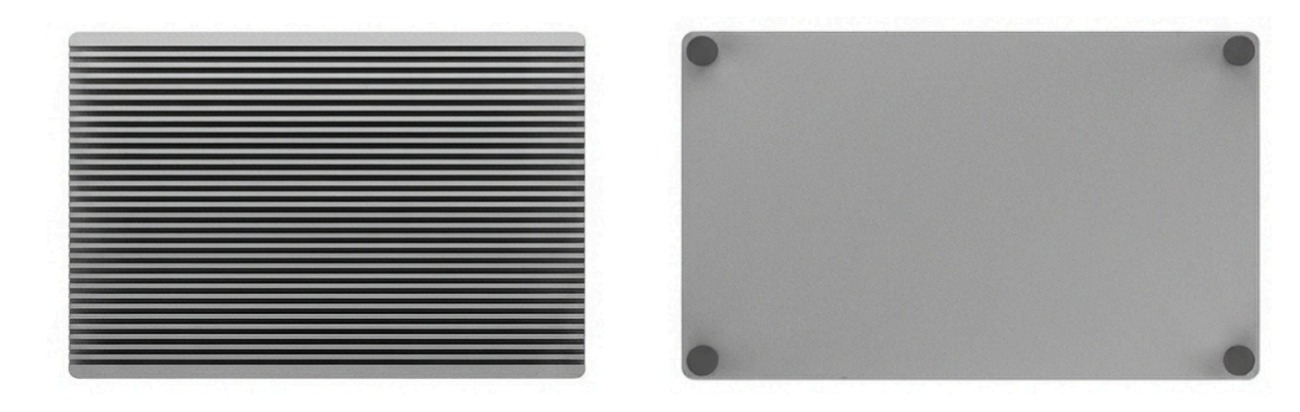

Machined heatsink top (left) · underside with four anti-slip feet (right)

I/O & connectivity

Every port your deployment actually needs

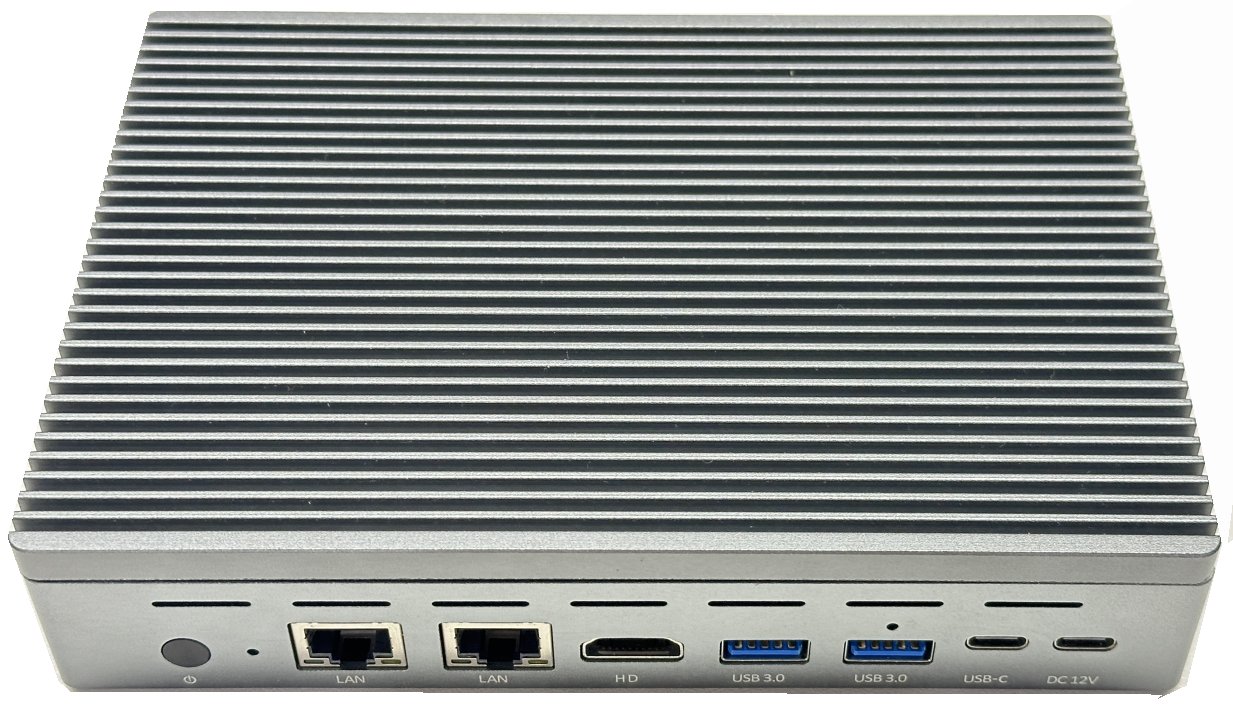

The rear panel is laid out for commercial installs: two independent networks, a 4K display output, fast USB for peripherals, a full-function USB-C port, and a locking-friendly DC barrel input.

I/O on same side
Applications

Four jobs. One silent platform.

The F9B Pro is deployed wherever content must be shown, transactions must be processed, or work must simply get done — quietly, and every single day.

 Retail · QSR · Malls
APPLICATION 01

Digital Signage & Menu Boards

Signage fails for two reasons: heat and dust. A fanned player pulls airborne grease, flour and lint through its chassis, and eventually stops. The F9B Pro removes the fan entirely, leaving a sealed aluminium body that survives behind a panel for years.

  • 4K@60 Hz over HDMI 2.0 — sharp, flicker-free content on large-format commercial panels.
  • Silicon video decode — H.264, HEVC and VP9 playback without stressing the CPU, so playlists loop smoothly.
  • Simplified CMS networking — one port for the content management system, one for the store network.
 Hospitality · AV & Events
APPLICATION 02

Media Player & AV Playback

In a bar, hotel lobby or showroom, the player sits in the room with your guests. It has to be invisible — and it has to keep running through a twelve-hour service day. The F9B Pro is silent by construction, not by damping.

  • Completely inaudible — no fan noise in restaurants, lounges, hotel rooms or presentation spaces.
  • Dual independent outputs — HDMI 2.0 for the main screen plus USB-C display output to cover a second surface from a single unit.

  • Quiet, low-heat installation — safe inside closed AV cabinets and equipment racks where fanned PCs overheat.
 Self-service · Transport · Healthcare
APPLICATION 03

Self-Service Kiosks

A kiosk is a computer with no doors and no maintenance window. Once it is sealed into a column or enclosure, nobody is going to service it. Passive cooling and a sealed chassis are exactly what that environment demands.

  • No dust ingress — without a fan there is no forced airflow dragging particles into the enclosure.
  • Touch and peripherals over USB — connect touchscreens, card readers, scanners, printers and cameras to the four USB ports.

  • Compact and mountable — at just 26 mm tall it disappears inside pedestals, pods and wall cavities.
 Retail · F&B · Pharmacy
APPLICATION 04

Point of Sale & Retail Terminals

A till must be boring and dependable. It needs the right ports, a stable network, enough RAM to run the POS application and a browser at the same time, and it must not distract anyone with a whine from a fan.

  • Two isolated networks — keep payment traffic on one 2.5 GbE port and back-office or camera traffic on the other.
  • Peripheral-rich USB — barcode scanner, receipt printer, cash drawer, customer-facing display and card reader.
  • Runs mainstream POS software — Windows 11 Pro with 16 GB LPDDR4 handles standard retail and hospitality applications comfortably.
Corporate · Education · Front desk
Technical specification

F9B Pro — full specification

Compact on the outside, complete on the inside. The table below lists the standard configuration; optional memory and storage capacities are available for volume orders.

Scroll horizontally to see all columns

Product Form Form factor Mini PC, fanless, aluminium heatsink chassis
Product Form Dimensions 173 mm × 116 mm × 26 mm
CPU Type 12th Gen Intel® Alder Lake-N100 — 4 cores, entry-level commercial class
CPU Speed Up to 3.4 GHz
GPU Type Intel® UHD Graphics with hardware video decode (H.264 / HEVC / VP9)
RAM Memory LPDDR4 16 GB — optional capacities available
ROM Flash Storage 256 GB NAND flash — optional capacities available
Wi-Fi / BT Wireless Wi-Fi dual-band 1T1R 11ac + Bluetooth 5.0 (2-in-1 module)
Ethernet RJ-45 2 × 2.5 GbE LAN (Realtek RTL8125BG), independent controllers
Card Reader SD / TF 1 × SD/TF slot, supports cards up to 512 GB
USB Interface 1 × USB-C (full-function) + 4 × USB (incl. 2 × USB 3.0 on the rear panel)
Video Out HDMI 1 × HDMI 2.0 — up to 4K @ 60 Hz
Audio Audio jack 1 × 3.5 mm standard headphone / line out
Power Input DC 12 V × 1 (external adapter)
Operating System System version Windows 11 Pro or above

Specifications describe the standard reference configuration and may be revised without notice. Memory and storage capacities, wireless module and display output capability can vary by build order — please confirm against the datasheet issued with your quotation.
