A compact, fanless touch computer ready for desktop stand or wall-mount installation in kiosks, POS terminals, HMI panels, and front-desk all-in-one setups.
The F10 combines a 10.1" IPS capacitive touchscreen with a full Windows/Linux PC in a slim all-in-one chassis. It is purpose-built for reliable, always-on operation in customer-facing and control applications.
Deploy as a compact self-service kiosk for check-in, ordering, ticketing, or information lookup. The 10-point capacitive touch surface delivers a responsive, smartphone-like experience.
Run full Windows POS software on a counter-top terminal that takes minimal space. Connect receipt printers, barcode scanners, cash drawers, and payment devices through USB and RS232.
Mount on machinery or control panels as a human-machine interface. The RS232 serial port, Gigabit LAN, and fanless design make it ideal for factory floors and automation systems.
Use it as a tidy front-desk or back-office computer. Its integrated stand, compact footprint, and HDMI output let it fit reception desks, small offices, and shared workstations.
The 10.1" 800 × 1280 IPS panel with G+G capacitive touch supports up to 10 simultaneous touch points for smooth, accurate interaction in apps and on-screen keyboards.
The compact chassis is designed for both desktop stand placement and VESA-compatible wall mounting, so it adapts to counters, kiosks, panels, and machinery.
Four USB 3.0 ports, full-function USB Type-C, Gigabit RJ45, HDMI 2.0, DB9 RS232, 3.5mm audio, and Micro SD/TF give you the connectivity legacy and modern peripherals demand.
Passive cooling keeps the system quiet and free of dust buildup, making it well suited for 24/7 kiosk, retail, and industrial environments.
Install the F10 the way your space demands. The integrated desktop stand keeps cables tidy on a counter, while the rear VESA mounting pattern lets you attach it to walls, swing arms, or embedded enclosures.
The F10 is equipped with a full set of commercial and industrial interfaces, minimizing the need for adapters and expansion hubs.

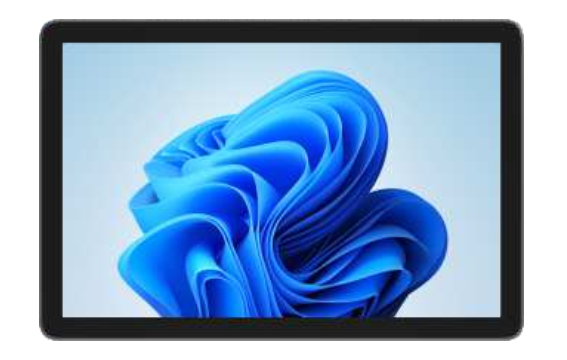

Clean black bezel around a bright 10.1" touch screen.

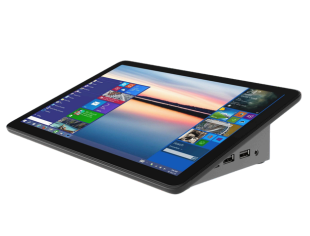

Integrated stand with a comfortable viewing angle.

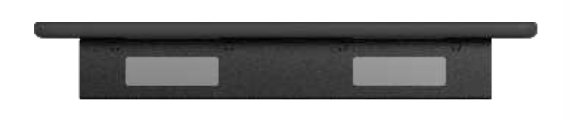

Compact depth for tight counter and panel spaces.

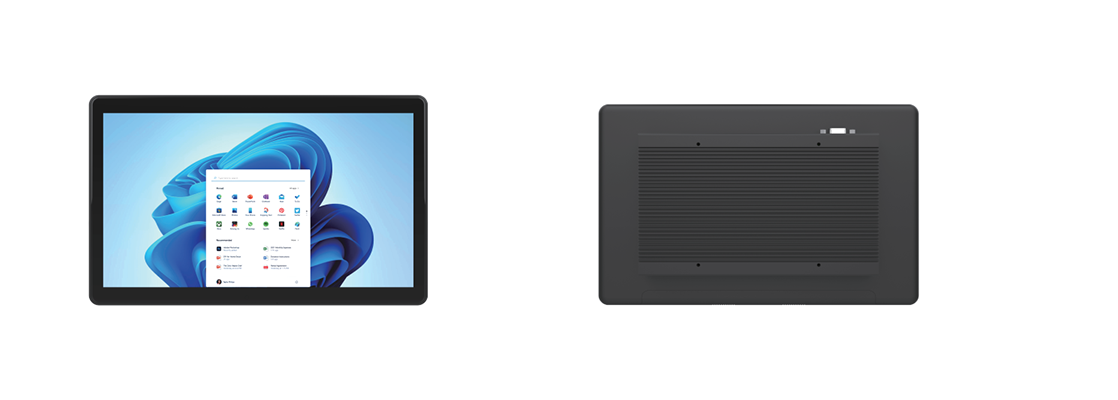

Aluminum-style rear with VESA mounting points.

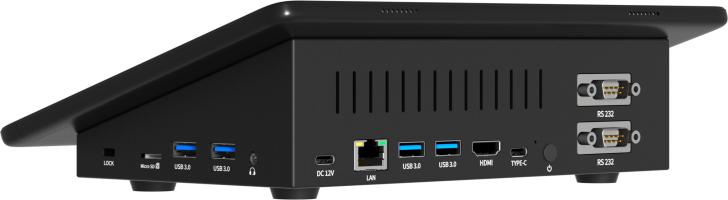

All ports grouped on the rear for clean cable management.

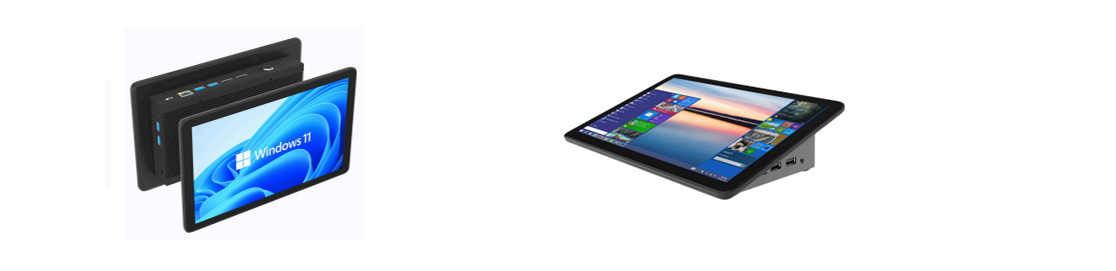

Designed for desktop, wall, and embedded installations.
| Form Factor | 10.1" PC + Tablet All-in-One |
|---|---|
| Dimensions | 241.5 × 160.2 × 66.1 mm |
| Operating System | Windows 11 / Linux |
| CPU | Intel Celeron N5095 (2.0 GHz – 2.90 GHz) |
| GPU | Intel UHD Graphics |
| RAM | 8 GB LPDDR4 (optional) |
| Storage | 128 GB NAND Flash (optional) |
| Battery | 5000 mAh / 7.6 V rechargeable lithium polymer (optional) |
| Speaker | Cavity 8 Ω / 1 W speaker |
| Microphone | Optional |
| Sensor | Built-in sensor support |
| Display Size | 10.1" |
|---|---|
| Resolution | 800 × 1280 (IPS) |
| Touch Module | G+G capacitive, 10-point multi-touch |
| Ethernet | RJ45 1000 Mbps Gigabit LAN |
| Wi-Fi / Bluetooth | Intel 3165 dual-band 1T1R 11ac + Bluetooth 4.2 |
| USB | 4 × USB 3.0 + 1 × full-function USB Type-C |
| HDMI | 1 × HDMI 2.0 |
| Serial | 1 × DB9 RS232 |
| Audio | 3.5 mm headphone output |
| Card Reader | Micro SD / TF (up to 512 GB) |
| Mounting | Desktop stand + wall-mount (VESA-compatible) |
