F15
15.6" Windows Touch All-in-One PC
A larger-format, fanless touch computer for desktop or wall-mounted kiosk, POS, HMI, and all-in-one desktop deployments.
Windows 11 / Linux 15.6" Full HD IPS Desk + Wall Mount Gigabit LAN + RS232
A larger-format, fanless touch computer for desktop or wall-mounted kiosk, POS, HMI, and all-in-one desktop deployments.
The F15 packs a 15.6" Full HD IPS touchscreen and a full Windows/Linux PC into a slim 44 mm chassis. It is designed for reliable, always-on operation in customer-facing and control environments where a larger display matters.
The large 15.6" Full HD display is ideal for self-service kiosks, visitor check-in, wayfinding, and interactive catalogs where readability and touch responsiveness matter.
Run full Windows POS software on a counter-top terminal with plenty of screen space for product images, cart summaries, and payment workflows.
Mount on machinery or control panels as a human-machine interface. The RS232 serial port, Gigabit LAN, and fanless cooling suit factory floors and automation systems.
Use it as a tidy front-desk or back-office computer. The integrated stand and HDMI output make it a ready-to-go desktop AIO for offices, clinics, and service counters.
The 15.6" 1920 × 1080 IPS panel with G+G capacitive touch supports up to 10 simultaneous touch points for smooth, accurate interaction in apps and on-screen keyboards.

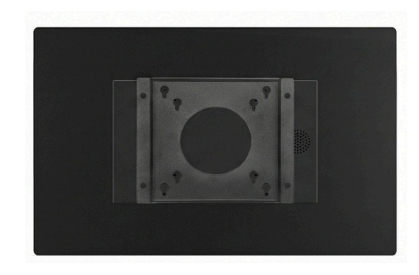

The chassis is designed for both desktop stand placement and VESA-compatible wall mounting, so it adapts to counters, kiosks, panels, and machinery.
Four USB 3.0 ports, full-function USB Type-C, Gigabit RJ45, HDMI 2.0, DB9 RS232, 3.5mm audio, and Micro SD/TF give you the connectivity legacy and modern peripherals demand.
Passive cooling keeps the system quiet and free of dust buildup, making it well suited for 24/7 kiosk, retail, and industrial environments.

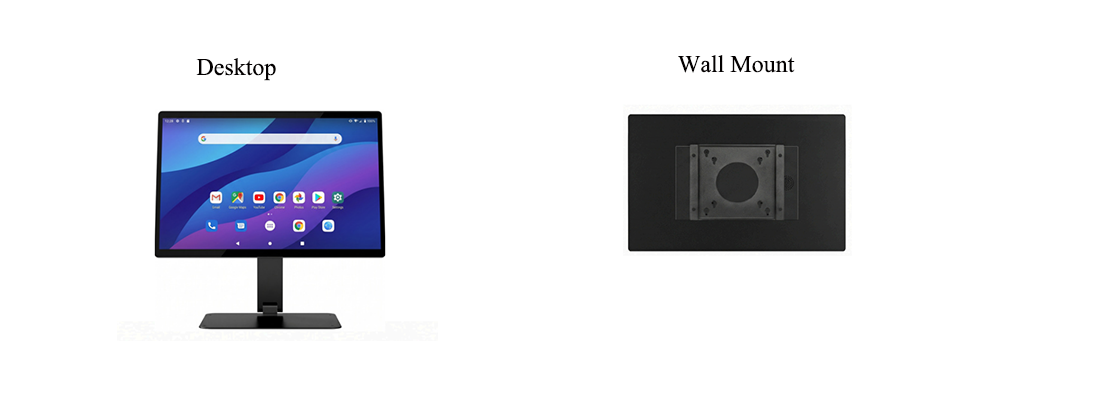

Install the F15 the way your space demands. The integrated desktop stand keeps the display at a comfortable viewing angle on a counter, while the rear VESA mounting pattern lets you attach it to walls, swing arms, or embedded enclosures.
The F15 is equipped with a full set of commercial and industrial interfaces, minimizing the need for adapters and expansion hubs.

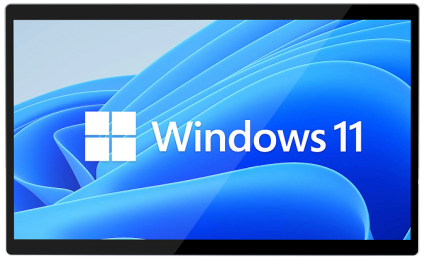

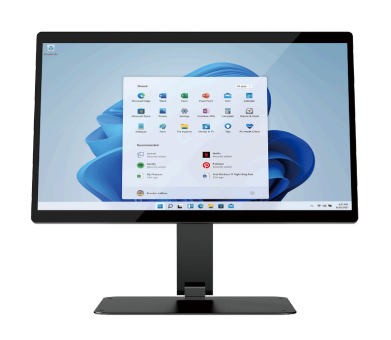

Clean black bezel around a bright 15.6" touch screen.

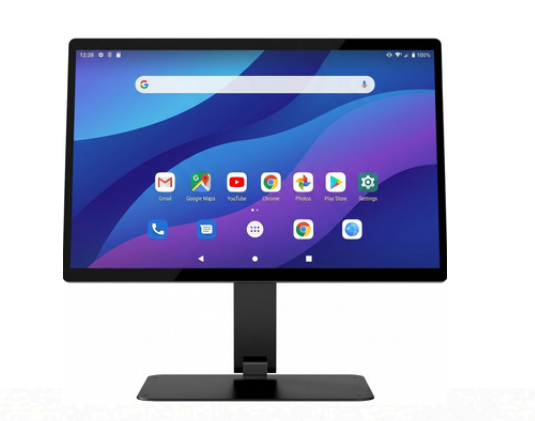

Integrated stand with a comfortable viewing angle.

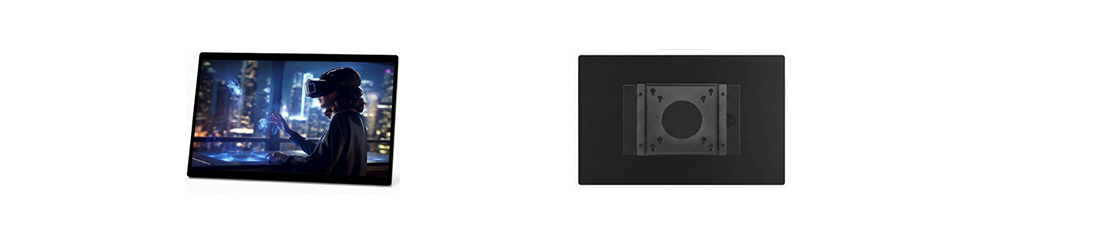

Vivid display ideal for kiosks and customer-facing apps.

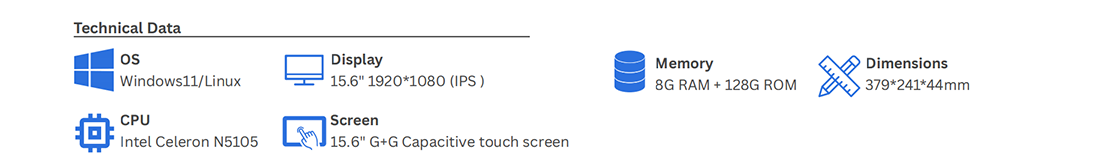

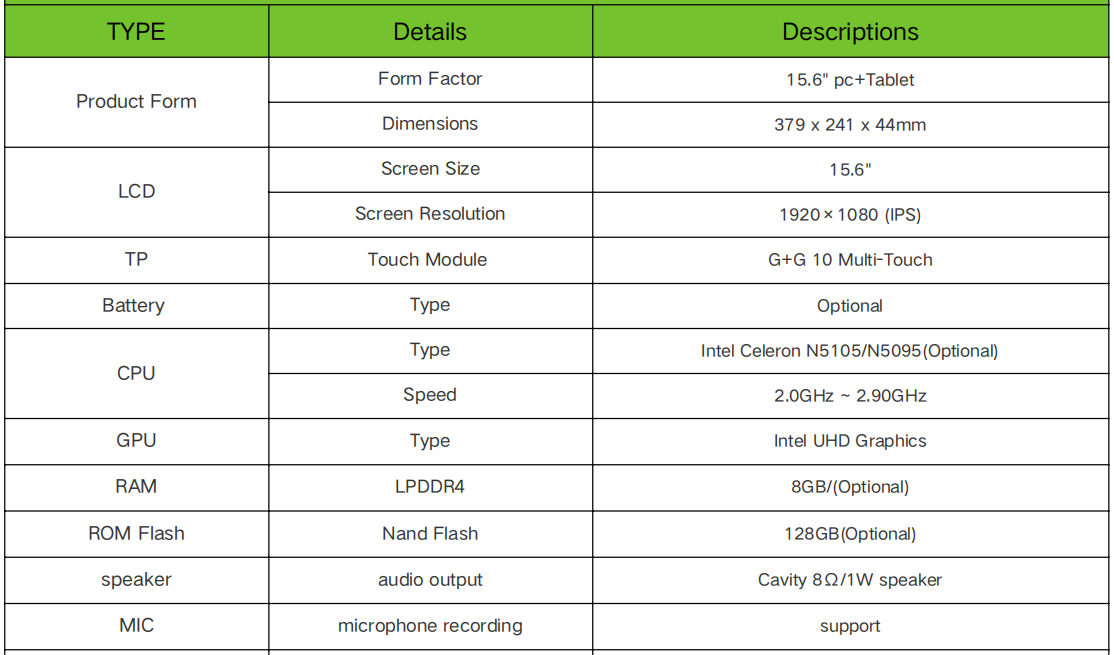

| Model | F15 |
|---|---|
| Form Factor | 15.6" PC + Tablet All-in-One |
| Dimensions | 379 × 241 × 44 mm |
| Operating System | Windows 11 / Linux |
| CPU | Intel Celeron N5105 / N5095 (2.0 GHz – 2.90 GHz) |
| GPU | Intel UHD Graphics |
| RAM | 8 GB LPDDR4 (optional) |
| Storage | 128 GB NAND Flash (optional) |
| Battery | Optional |
| Speaker | Cavity 8 Ω / 1 W speaker |
| Microphone | Support |

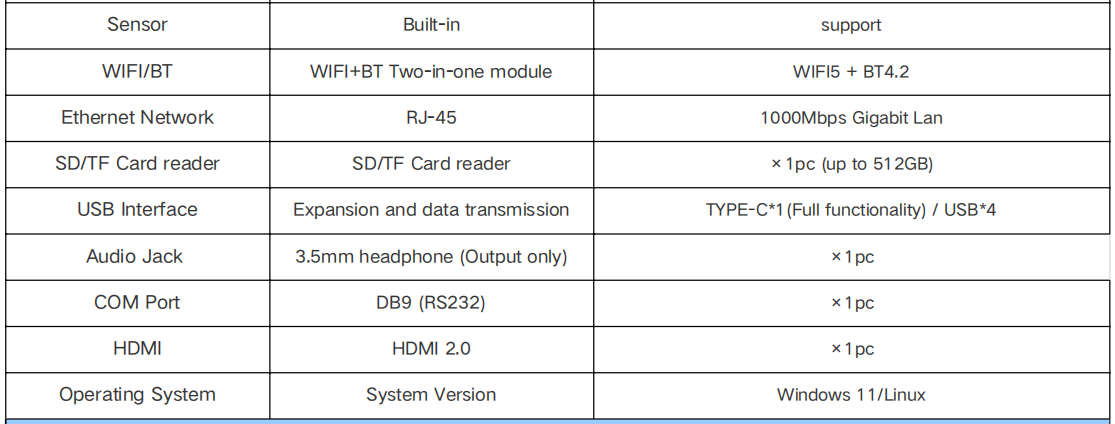

| Sensor | Built-in sensor support |
| Display Size | 15.6" |
|---|---|
| Resolution | 1920 × 1080 (IPS) |
| Touch Module | G+G capacitive, 10-point multi-touch |
| Ethernet | RJ45 1000 Mbps Gigabit LAN |
| Wi-Fi / Bluetooth | Wi-Fi 5 + Bluetooth 4.2 |
| USB | 4 × USB 3.0 + 1 × full-function USB Type-C |
| HDMI | 1 × HDMI 2.0 |
| Serial | 1 × DB9 RS232 |
| Audio | 3.5 mm headphone output |
| Card Reader | Micro SD / TF (up to 512 GB) |
| Mounting | Desktop stand + wall-mount (VESA-compatible) |
